To avoid vibrations, crystal is mechanicaly linked to ground and big 10µF capacitor is damped
and fixed.
|

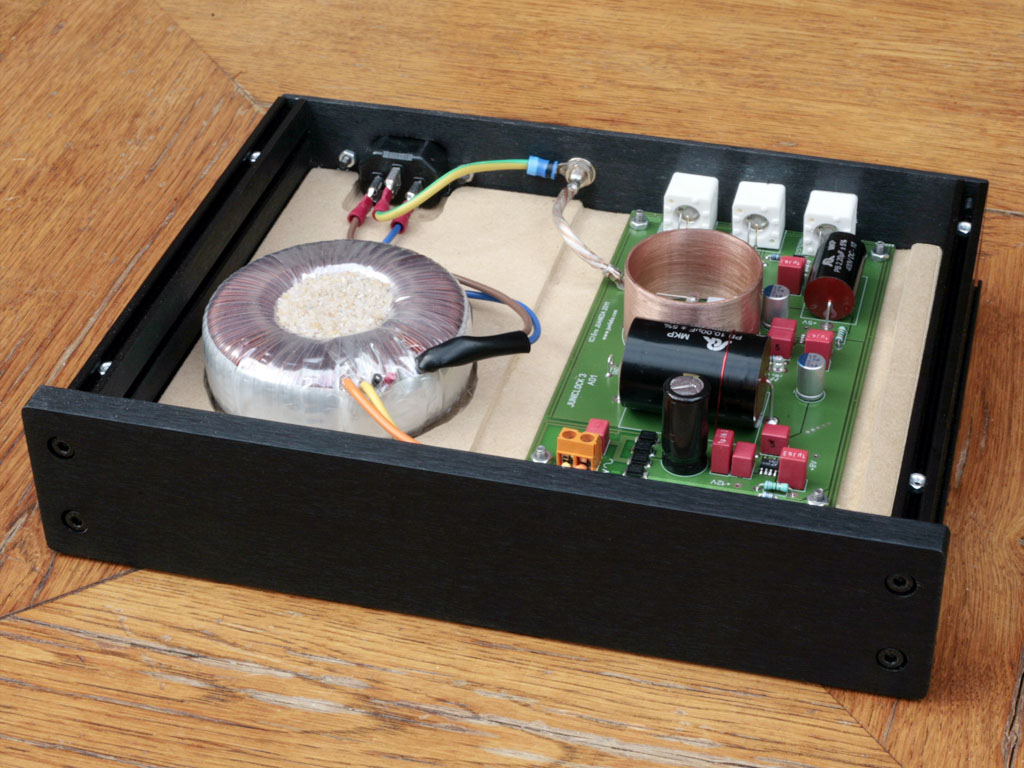

The crystal is inside the copper tube.
|

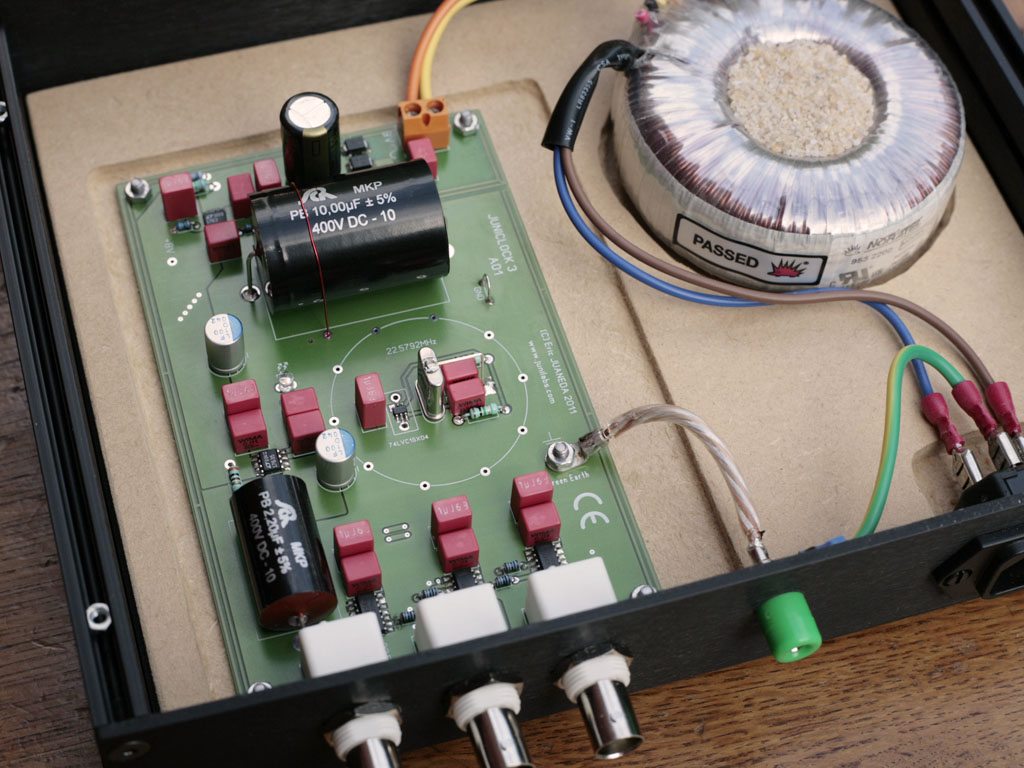

Three BNC output and Green Earth connector.
|

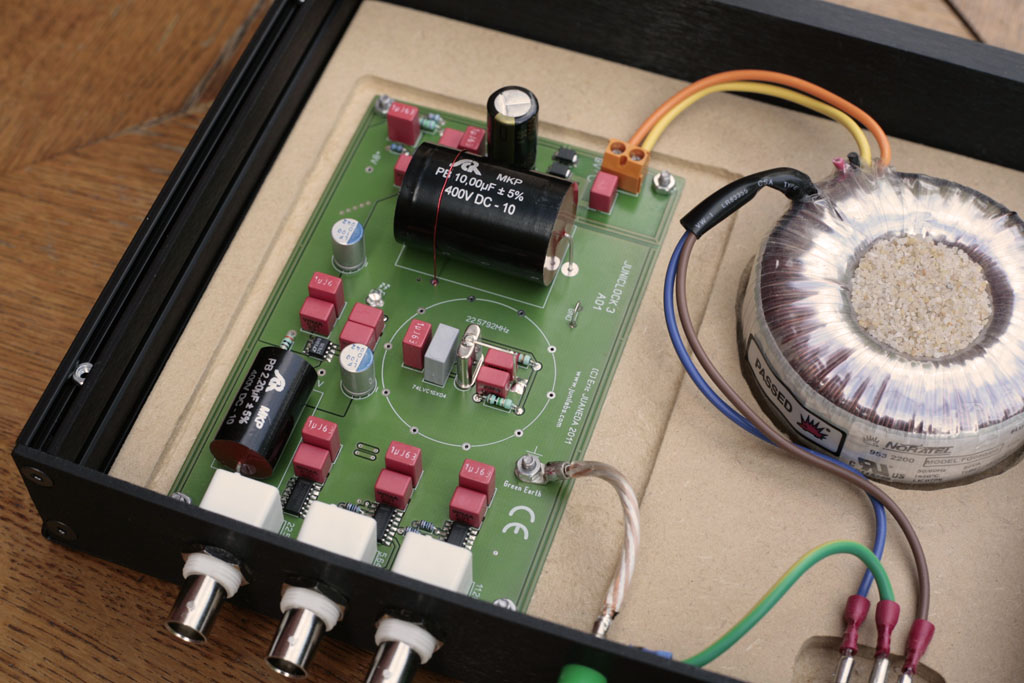

Oscillator circuit is under its MKP decoupling capacitor.
|
|
|
